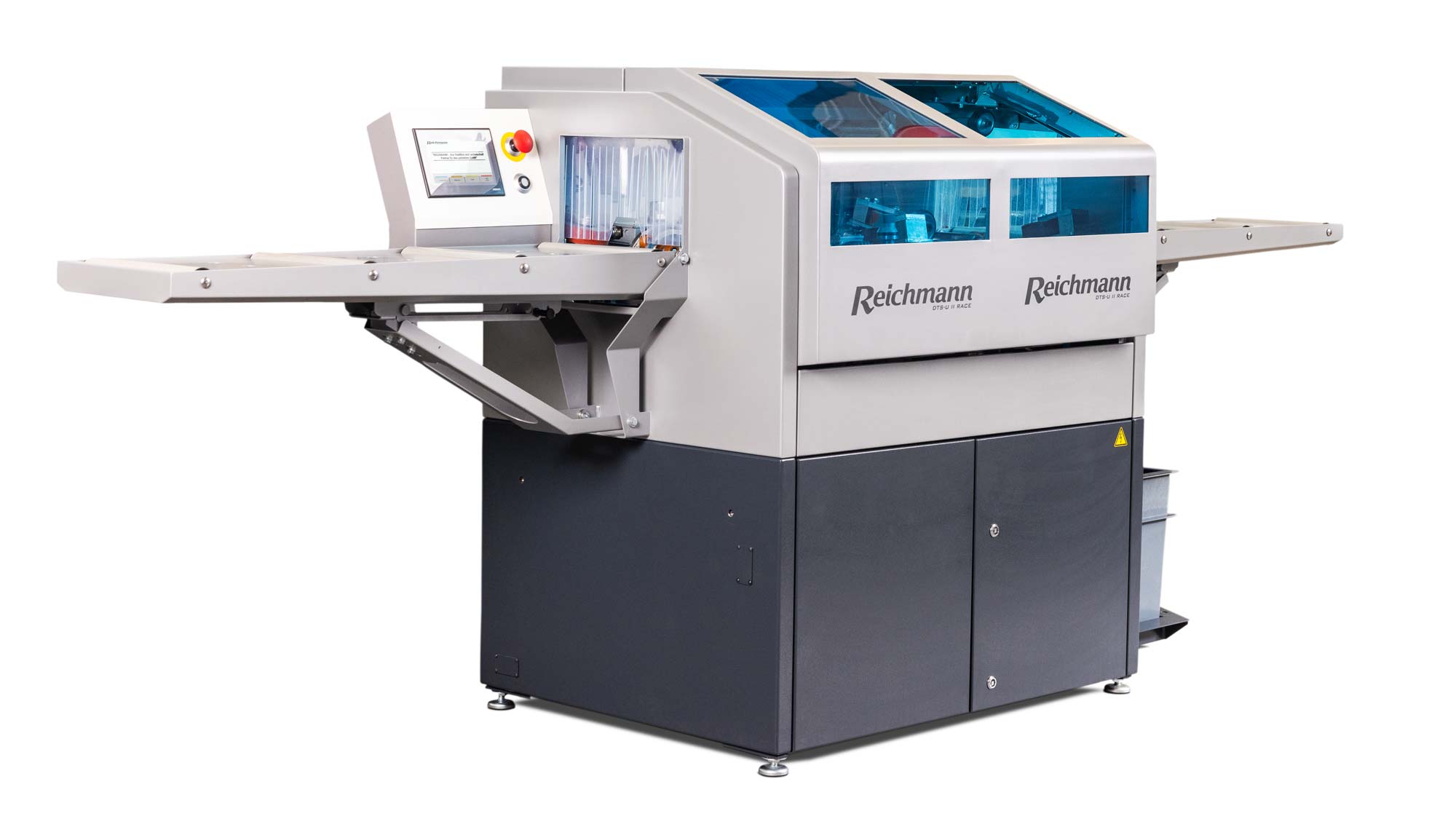

DTS- U II Race base and side finish grinder

Uncompromising edge tuning.
Time-saving. Thrilling. Comfortable. Universal.

The further developed new edition of our edge tuning wonder DTS-U Pro raises the edge tuning to a new level. With the new edge tuning machine from Reichmann, you make no compromises. Thanks to the modular design, you can easily adapt the machine to your requirements. Highest throughput, comfortable handling, and best quality are guaranteed.

Both side and base edges are simultaneously machined in just one pass using the proven HQT edging technology. The precisely ground edges from the DTS-U II Race with the characteristic mirror finish are directly ready to ride. Convince your customers with an extremely long edge life, best gliding characteristics, and highest safety on the slope!

Dimensions (L x W x H) mm / inch – folded out 3960 x 930 x 1380 / 156 x 37 x 55
Dimensions (L x W x H) mm / inch – folded in 1700 x 930 x 2200 / 67 x 37 x 86.5
230 V, 1 PH, 20 Amp

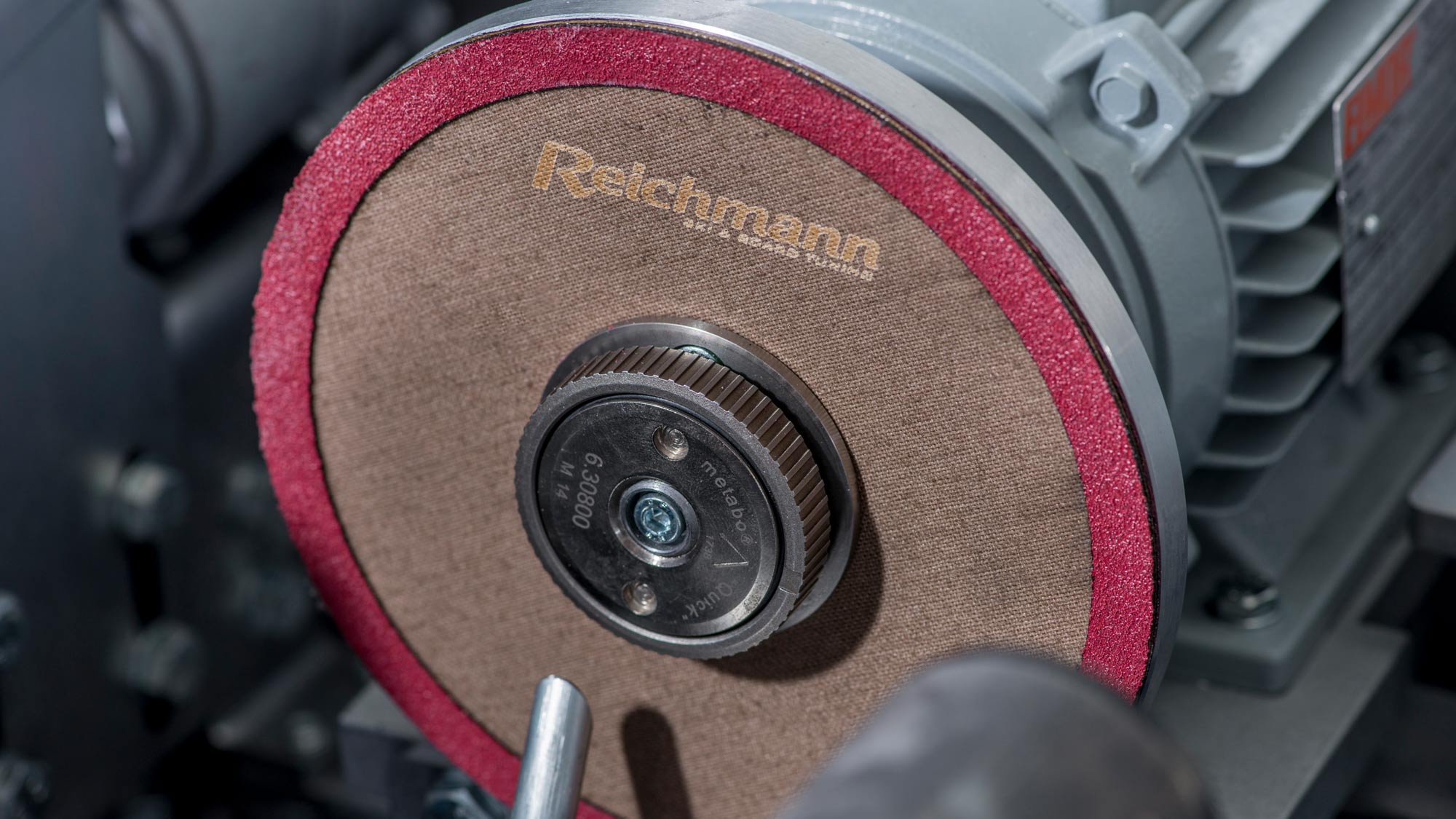

Efficient side edge pre-grinding

The newly developed "Edge Sanding Plate" from Reichmann is perfectly suited for side edge pre-grinding. This revolutionary grinding plate simultaneously removes the side edge during side edge pre-grinding. This eliminates time-consuming, manual work.

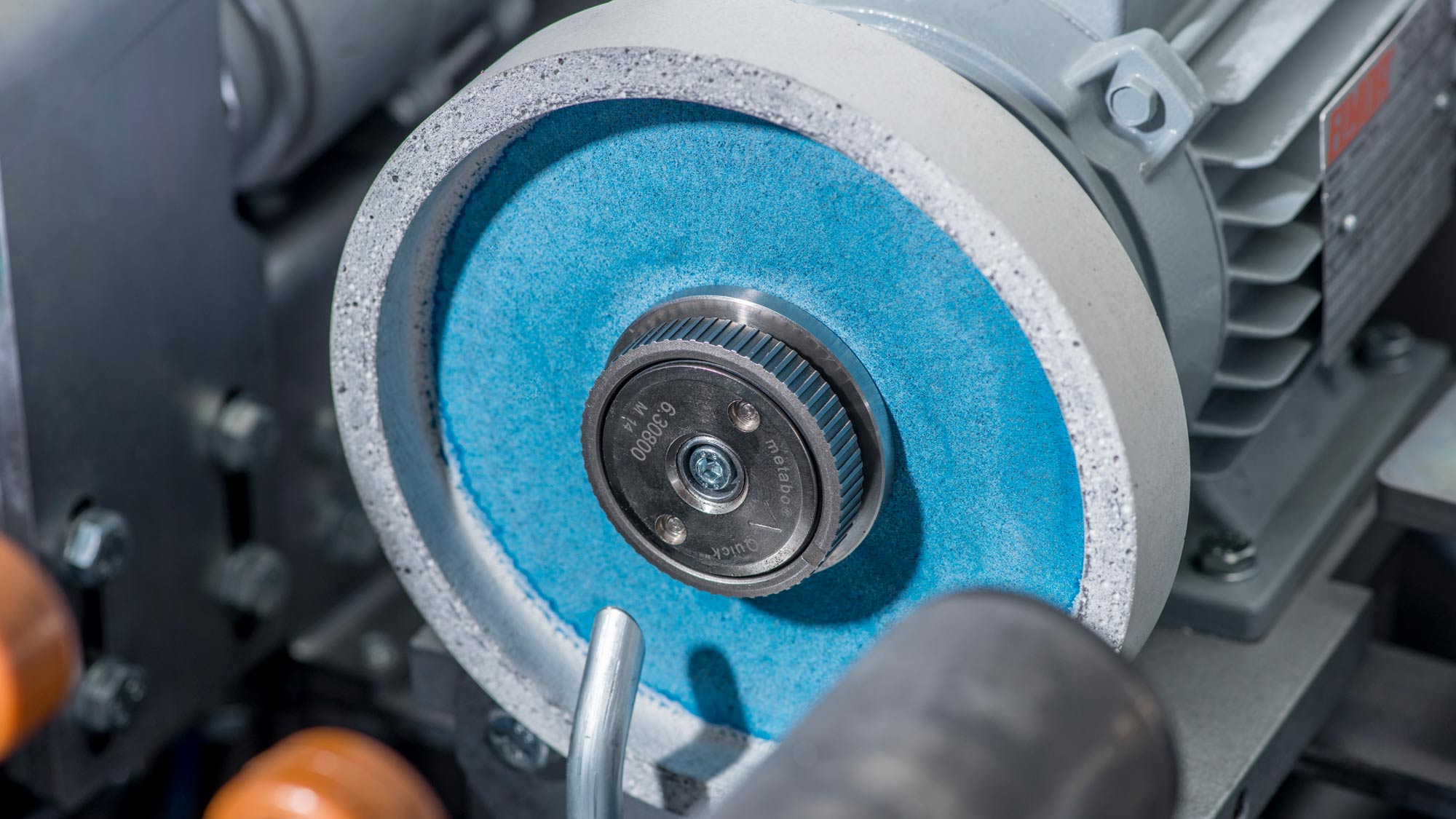

Quick change of discs

Within a few seconds, your disc can be exchanged without tools by means of the Reichmann "SwitchFix" quick-change system. This allows you to efficiently adapt your edge grinding machine to your requirements.

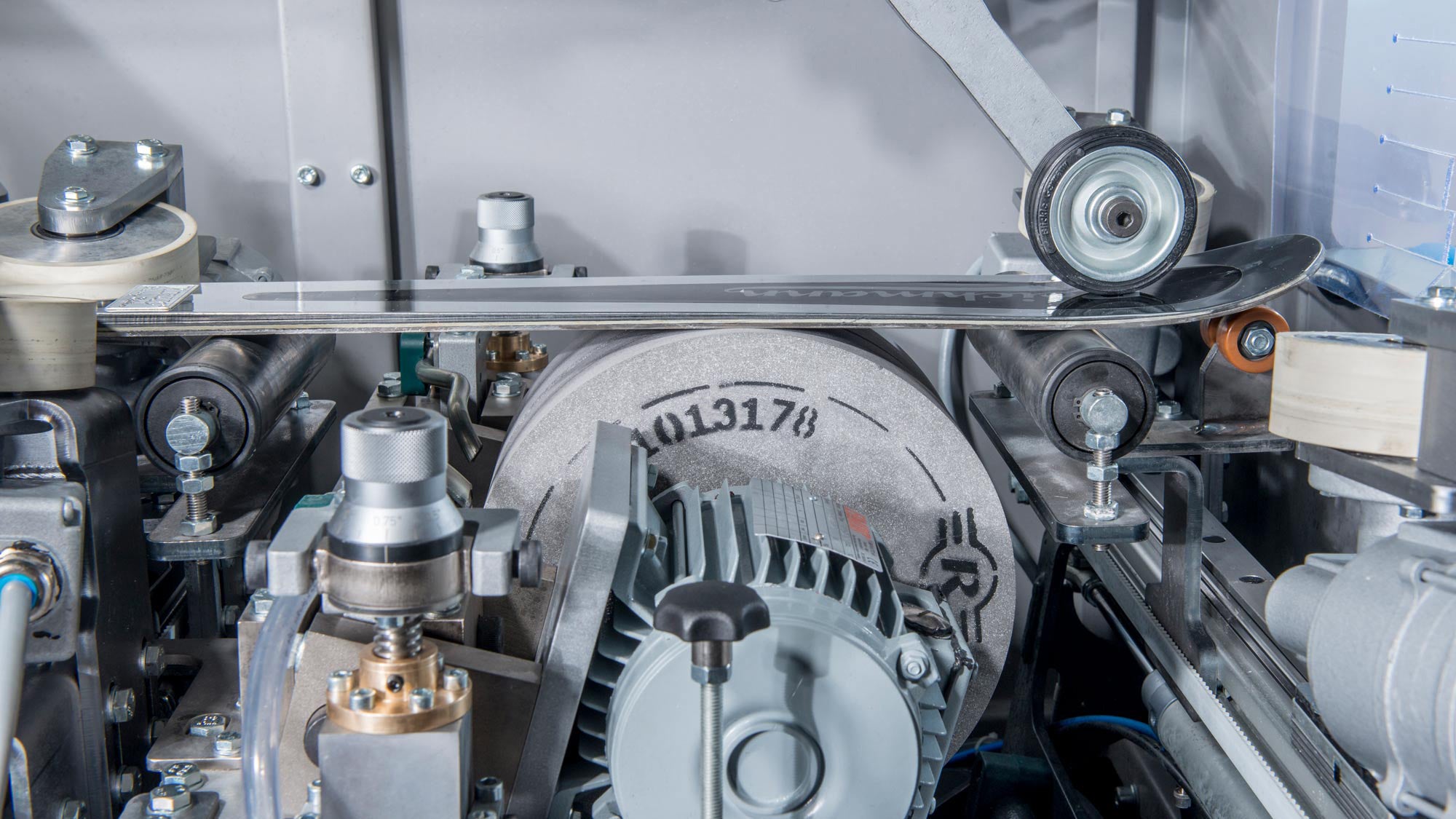

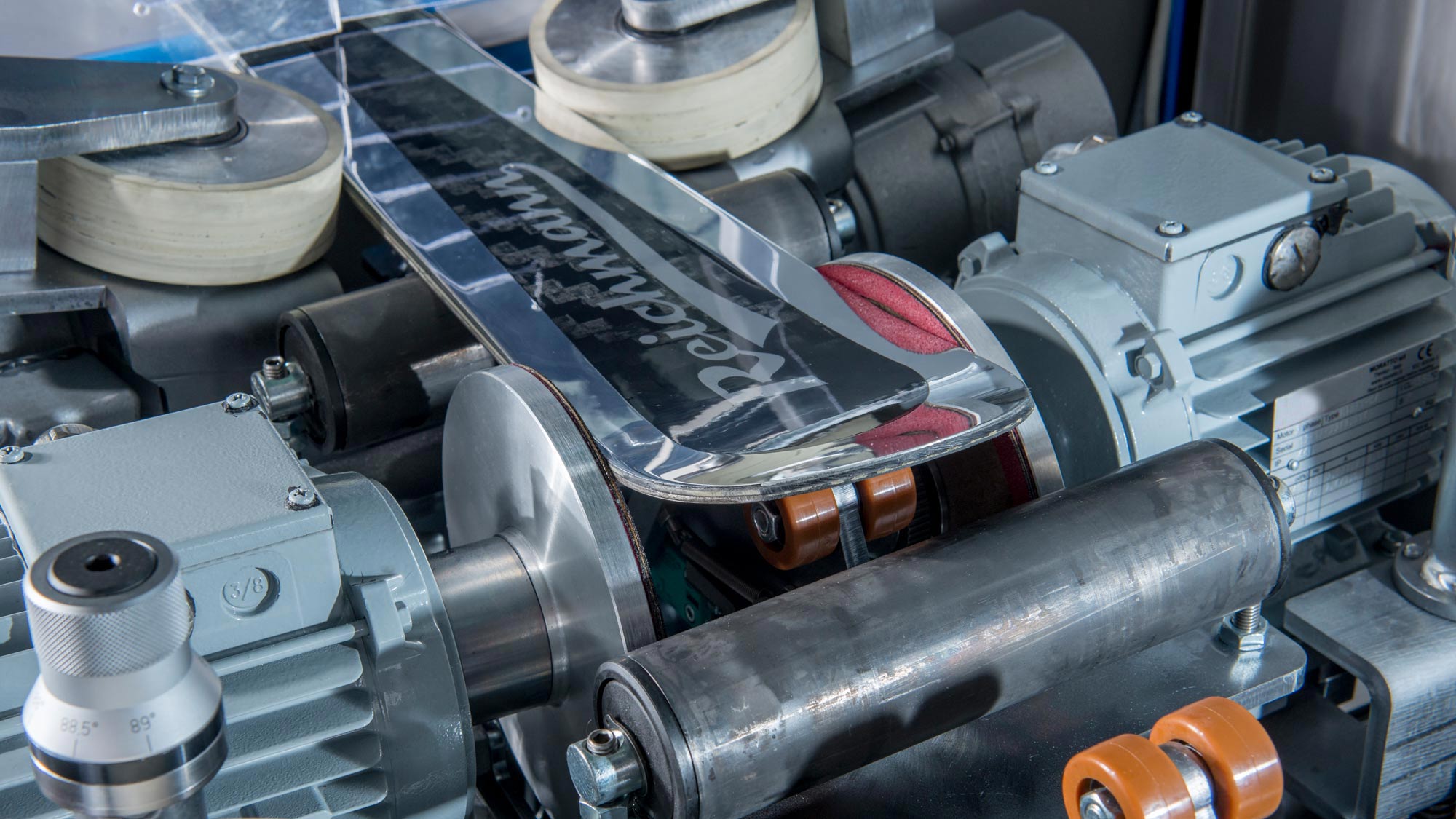

High-quality base edge tuning with mirror finish

The base edge tuning of the DTS-U II Race guarantees perfectly polished, burr-free edges for maximum safety and skiing pleasure. Since even the tip and tail are processed in the same operation, time-consuming manual reworking is no longer necessary. Ensure the best edge grinding results in the shortest processing time!

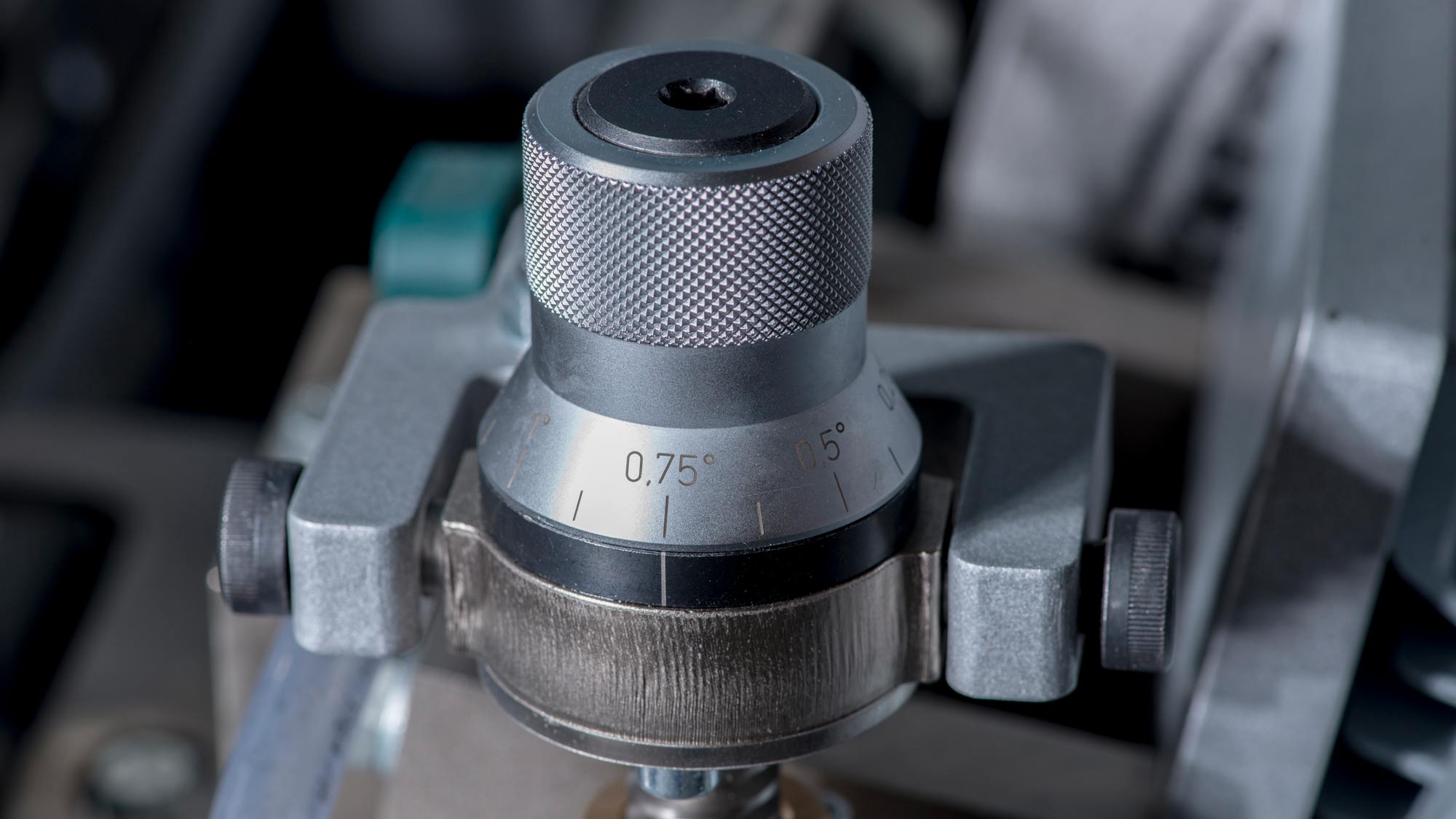

Angle adjustment made easy

With the practical and easily accessible angle adjustment for side and base edge, a particularly wide range of winter sports enthusiasts can be served in terms of skiing ability and ski type.

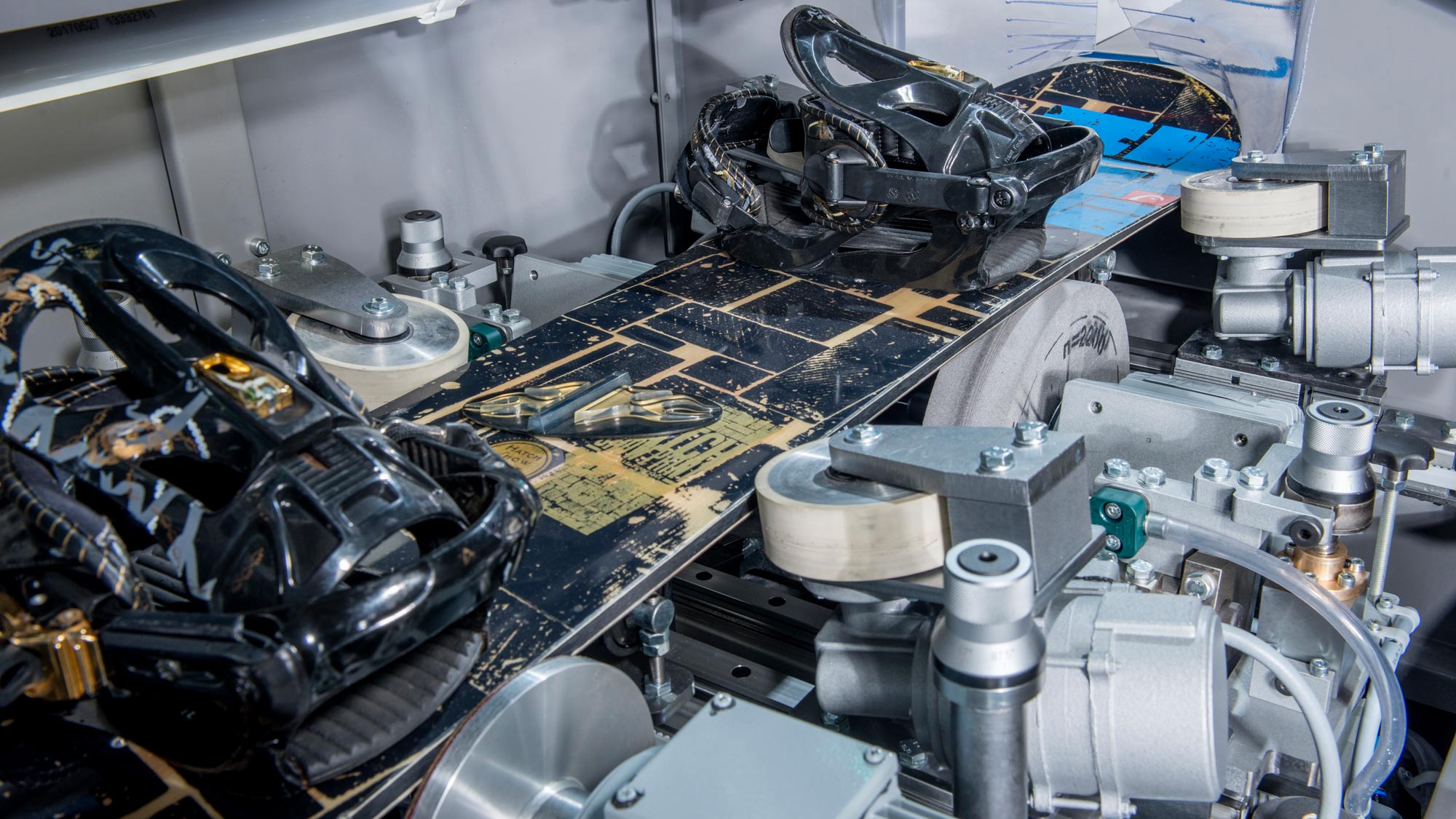

Universal use for all skis & boards

The pressure roller ensures safe transport of all types of skis and snowboards, such as children's skis or rocker skis. The new transport system of the DTS-U II Race enables transport without binding bridges. This makes your work easier and faster.

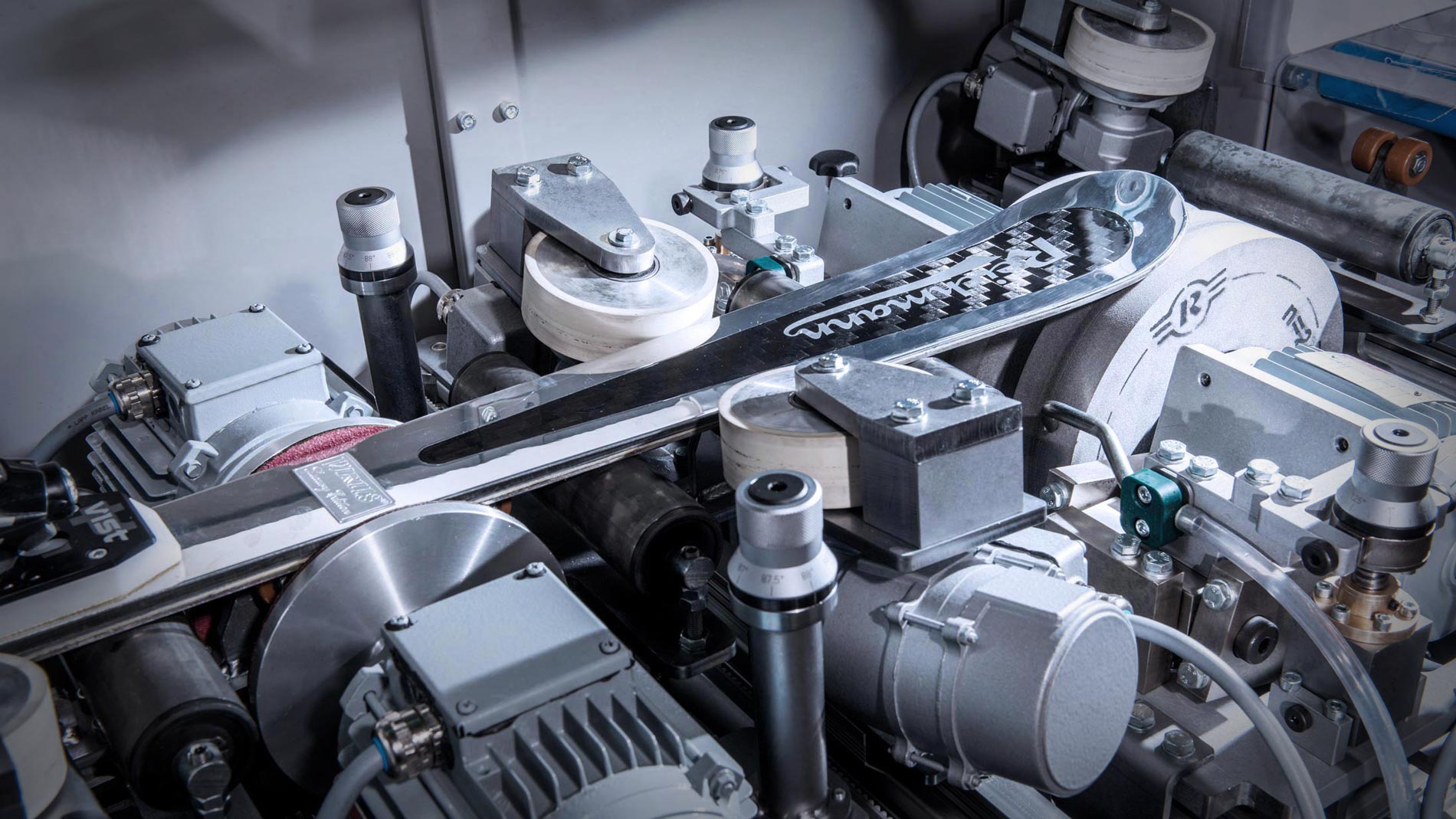

Automatic edge grinding with maximum throughput

With the new transport system of the DTS-U II Race, the loading of the skis and snowboards can already take place simultaneously with the base edge processing. This eliminates downtimes and you achieve an even higher throughput with gentle processing at the same time."
